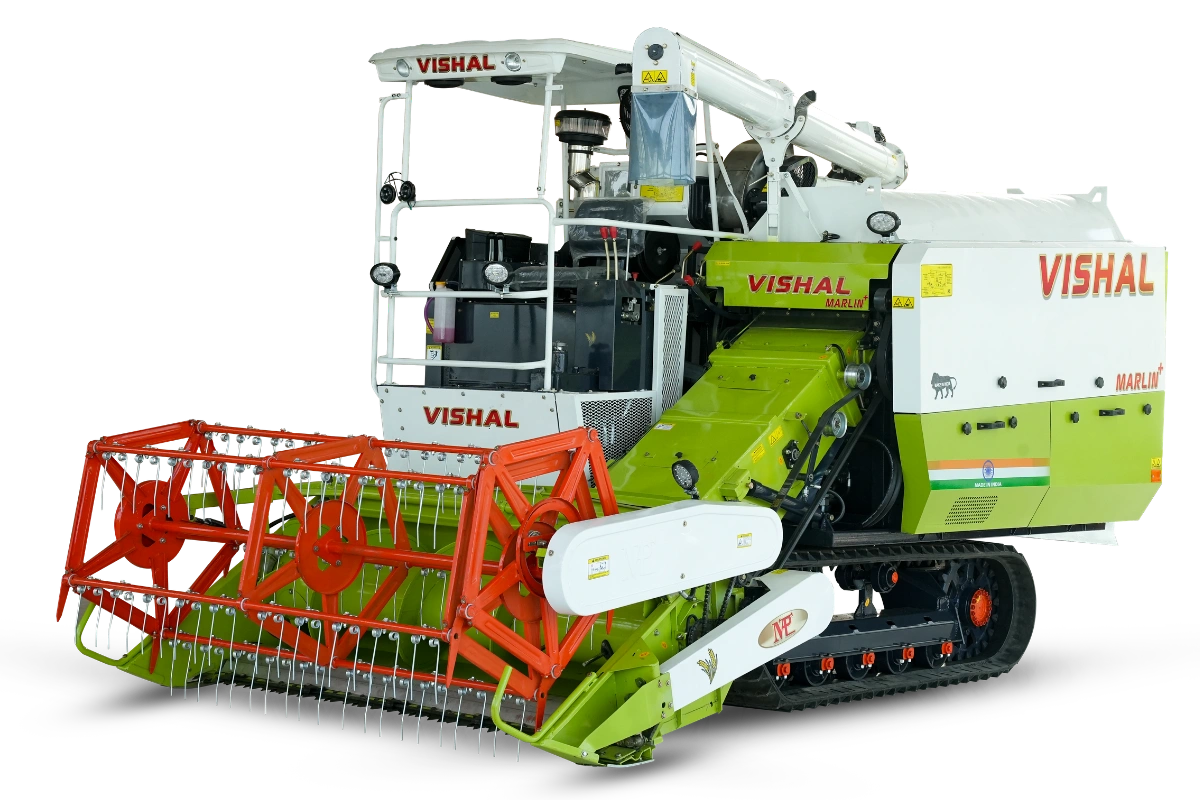

VISHAL Marlin

Track Combine Harvesters

VISHAL Marlin is track combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses.


VISHAL Marlin is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.

Operational Niche

Specifically engineered for extreme wet-land conditions where wheeled harvesters would lose traction or sink.

Optimized for the unique requirements of rice harvesting, ensuring clean grain separation from wet straw.

The track system distributes weight evenly, preventing soil compaction in sensitive agricultural wetlands.

With a small turning radius and hydraulic controls, it is ideal for maneuvering in restricted or irregularly shaped plots

Product Video

Features

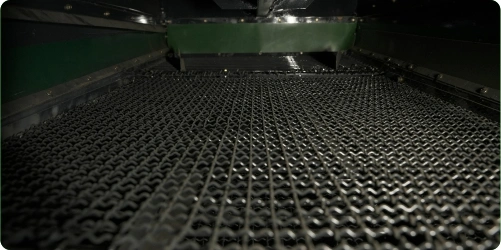

Better Sieves Design

Better Sieves Design

Enhances grain cleaning efficiency by ensuring better separation of grain from chaff.

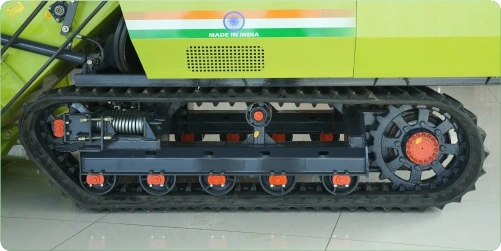

Bridgstone-Track

Bridgstone-Track

Provides superior traction and stability for smooth operation in muddy and wet field conditions.

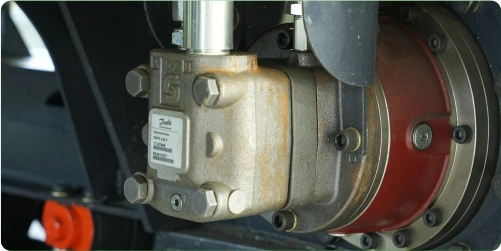

Danfoss Motor

Danfoss Motor

Delivers reliable hydraulic performance with smooth and efficient machine operation.

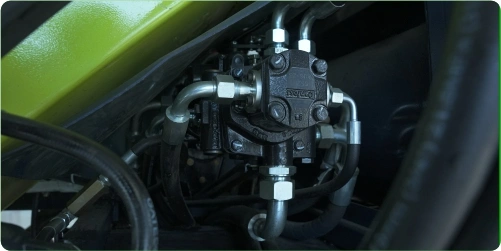

EATON Pump

EATON Pump

Ensures consistent hydraulic power for precise and responsive control.

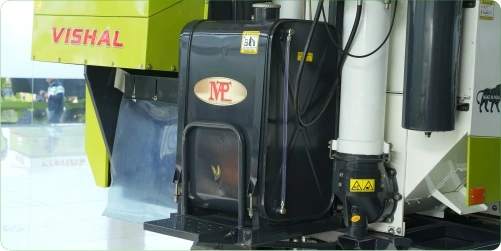

Fuel Tank

Fuel Tank

Large capacity fuel tank supports longer working hours without frequent refueling.

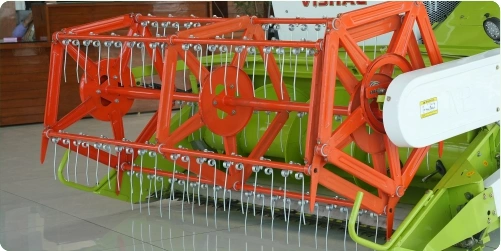

Heavy Duty Cutter Bar

Heavy Duty Cutter Bar

Built for strength and durability to handle dense and heavy crops efficiently.

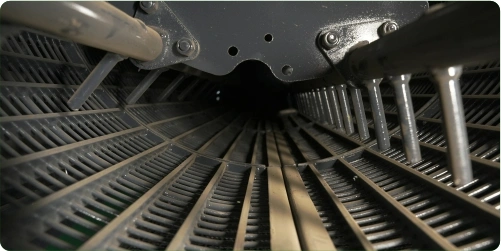

Heavy Duty Thresher Basket

Heavy Duty Thresher Basket

Ensures effective threshing with minimal grain damage and high output.

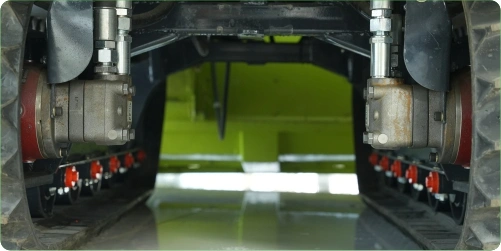

High Ground Clearance

High Ground Clearance

Prevents the machine from getting stuck, enabling easy operation in uneven and wet fields.

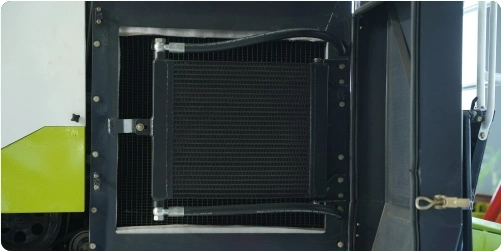

Radiator

Radiator

Maintains optimal engine temperature for uninterrupted and efficient performance.

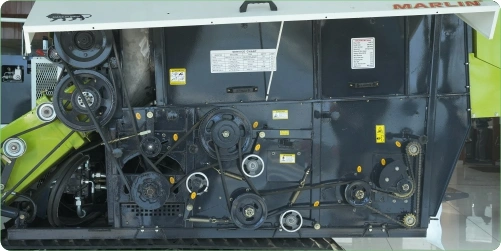

Side Belts Mechanism

Side Belts Mechanism

Ensures smooth crop flow and efficient transfer during harvesting operations.

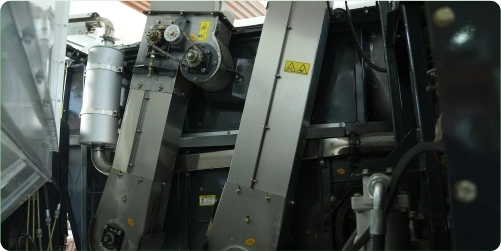

Stainless Steel Elevators

Stainless Steel Elevators

Offers corrosion resistance and long-lasting performance for grain handling.

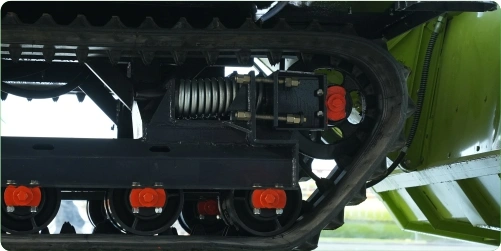

Strong Traction Control

Strong Traction Control

Provides better grip and control, ensuring stability across challenging terrains.

Technical Specifications

MODEL
Model Name VISHAL GRAIN CARE - MARLIN
Type Crawler Self-Propelled Full-Feed
ENGINE
Type Water-Cooled, 4 Stroke, Direct Injection, Turbocharged Vertical Diesel
Rated Power (kw / HP / rpm) 75 / 102 / 2400
Starting System Electric Start
DIMENSIONS
Overall Length (mm) 5080
Overall Width (mm) 2600
Overall Height (mm) 2705
PERFORMANCE / GENERAL
Feed Capacity (Kg/s) 5
Fuel Tank Capacity (L) 210
Fuel Consumption (Kg/ha) < 30
Min Ground Clearance (mm) 330
Operating Weight (Kg) 2985
DRIVING SYSTEM
Crawlers Rubber Track 500 × 90 × 53
Optional 550 × 90 × 53
Track Gauge 1150 mm
HST Capacity 45 cc
Working Speed (Km/hr) Lower: 0 – 4.45
Medium: 0 – 6.07
High: 0 – 7.6
CUTTING
Pickup Reel Diameter (mm) 900
Height Adjustment Hydraulic
Cutting Width (mm) 2200 (2000 / 2500 Optional)
THRESHING CYLINDER
Quantity 1
Diameter × Length (mm) φ640 × 2041
GRAIN SYSTEM
Grain Tank 1.4 m³ / 1400 Ltr.
Grain Unloading High Positioned, Swing Type Discharge Auger
EFFICIENCY
Operating Efficiency (ha/hour) 0.4 – 0.8
ADDITIONAL
Stalk Chopper Optional

Testimonials

Balwinder Singh, Mansa (Punjab)

“We bought our first Vishal 435 Combine in 2010, and it’s still running like new. Hardly needs any repair, and it finishes harvesting in half the time compared to others.”

Gurpreet Singh, Sangrur (Punjab)

“My father used Vishal Combine, now I’m using the same model. The machine never disappointed us — strong build, smooth working, and top output every season.”

Rajesh Yadav, Baghpat (Uttar Pradesh)

“I have been using Vishal 435 for more than 8 years. It saves fuel, works fast, and gives clean grain — that’s why our whole family trusts only Vishal.”

Harbhajan Singh, Tarn Taran (Punjab)

“Since 2009, we’ve used the same Vishal Combine for wheat and paddy. Still solid and powerful — this is what real quality looks like.”

Sandeep Dhull, Hisar (Haryana)

“Our village has many machines, but Vishal 435 runs the longest with the least maintenance. My father says it’s like a family member now.”

Ramesh Patel, Vidisha (Madhya Pradesh)

“I’ve been operating Vishal 435 Combine for 10 years. Strong body, heavy duty, and never gives trouble in the middle of the field — perfect for our soil and crop.”

Amarjeet Singh, Faridkot (Punjab)

“From my grandfather’s time, our family only trusts Vishal Combines. The 435 model gives excellent output, and it’s built like a tank.”

Sunil Kumar, Rohtak (Haryana)

“Using Vishal 435 since 2011. It works day and night without any problem — truly time-saving and reliable. Maintenance cost is almost nothing.”

Raghvendra Singh, Etawah (Uttar Pradesh)

“Our old Vishal Combine has completed more than 12 seasons. Still running perfectly, no breakdowns — it’s proof of real Indian strength.”

Kuldeep Singh, Bathinda (Punjab)

“Vishal 435 is part of our farming story now. From my father to me, the trust has stayed because it never fails — strong, steady, and always ready.”
