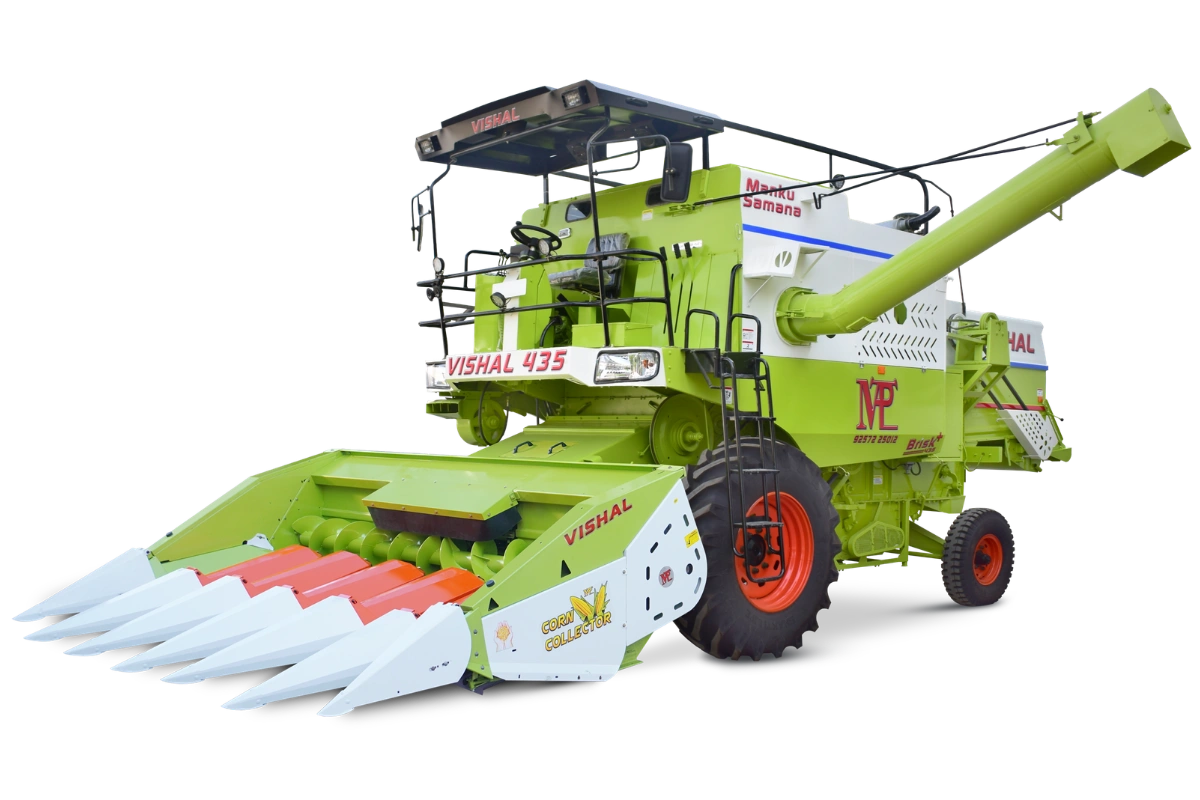

VISHAL 435 - Brisk Maize

Self Propelled Combine Harvesters

These maize-specific combine harvesters are designed for precise cutting, threshing, and grain collection, ensuring minimal losses and high-quality output. They are suitable for large and small maize fields, improving productivity while reducing manual labor.


The straw left behind can be used as fodder or chopped and spread on the field to maintain soil fertility. These models are reliable, efficient, and economical solutions for maize farmers seeking faster and more effective harvesting.

Operational Niche

Specifically designed to harvest wheat, paddy, soybean, sunflower, mustard, and pulses effectively.

High ground clearance allows for smooth operation in challenging wet and soft soils.

Optimized for harvesting slightly wet, lodged, or otherwise hard-to-thresh agricultural crops.

High road speed and capacity significantly reduce time and manual labor.

Product Video

Features

Hydraulic Discharge Auger

Hydraulic Discharge Auger

Enables smooth and efficient unloading of grain with minimal manual effort.

Hydraulic Jack for Rear Axle

Hydraulic Jack for Rear Axle

Allows easy lifting and adjustment for maintenance and field adaptability.

Adjustable Cutter Bar Chains

Adjustable Cutter Bar Chains

Allows flexible adjustment for smooth cutting performance across different crop conditions.

Spacious Operator Seat

Spacious Operator Seat

Provides maximum comfort for long working hours, reducing operator fatigue.

Race Padel Controller

Race Padel Controller

Enhances crop flow control for efficient harvesting and reduced grain loss.

Radiator

Radiator

Maintains optimal engine temperature for reliable and uninterrupted performance.

Reel Adjuster

Reel Adjuster

Allows precise reel positioning for better handling of different crop conditions.

Longer Feeder Chamber

Longer Feeder Chamber

Improves crop flow and feeding efficiency for higher productivity.

Straw Walkers

Straw Walkers

Ensures effective separation of grain from straw for cleaner output.

Heavy Duty Rear Axle

Heavy Duty Rear Axle

Delivers superior strength and stability for reliable performance on rough terrain.

Tines

Tines

Efficiently lift and guide crops into the cutter bar for smooth harvesting.

Elevator Chains

Elevator Chains

Ensures smooth and efficient transfer of grain within the machine.

Technical Specifications

ENGINE
Engine H6 Ashok Leyland / BS IV
Power (HP) 133
No. of Cylinders 6
Air Cleaner Dry Air Cleaner
Cooling System Water Cooled
TRANSMISSION
No. of Gears 4 Forward, 1 Reverse
Maximum Speed (Km/h) 35
BRAKE SYSTEM
Brake Type Hydraulic Assisted Disc Brakes
REEL
Type Pick Up Tine
Speed Adjustment Mechanical / Stepped Pulley
Height Adjustment Hydraulic
No. of Reel Pipes 6 (Six)
THRESHER DRUM
Dia (mm) 605
Width (mm) 1271
Drum Speed (RPM) 570 to 1000
CUTTER BAR
Working Width (mm) 4340
Overall Width (mm) 4410
Height Adjustment Hydraulic
Knife Stroke (mm) 90
Stroke Per Minute 853
CUTTER BAR MECHANISM
Width 14'4" / 174" / 4410
Cutting Height Range (mm) XXXXX
Reel Drive V-Belt Drive
CAPACITY
Grain Tank (Kg.) 1810
Fuel Tank (Ltrs) 300
Hydraulic Tank (Ltrs) 20
Coolant (Ltrs) 38
Gear Box Oil (Ltrs) 14
MAIN DIMENSIONS
Length 1527 / 723
Width 3190
Height 3890
Wheel Base 3830
Total Weight 9600
Width (inches) 51
Track Width 2480 (Driving) / 2040 (Steering)
Ground Clearance 350
Turning Diameter 14
TYRE SIZE
Front Tyres 18.4–30
Rear & Trailer Tyres 9.00–16
WORKING CAPACITY
Wheat 3.5 to 4.5 Acres
Paddy 2.5 to 3.5 Acres
