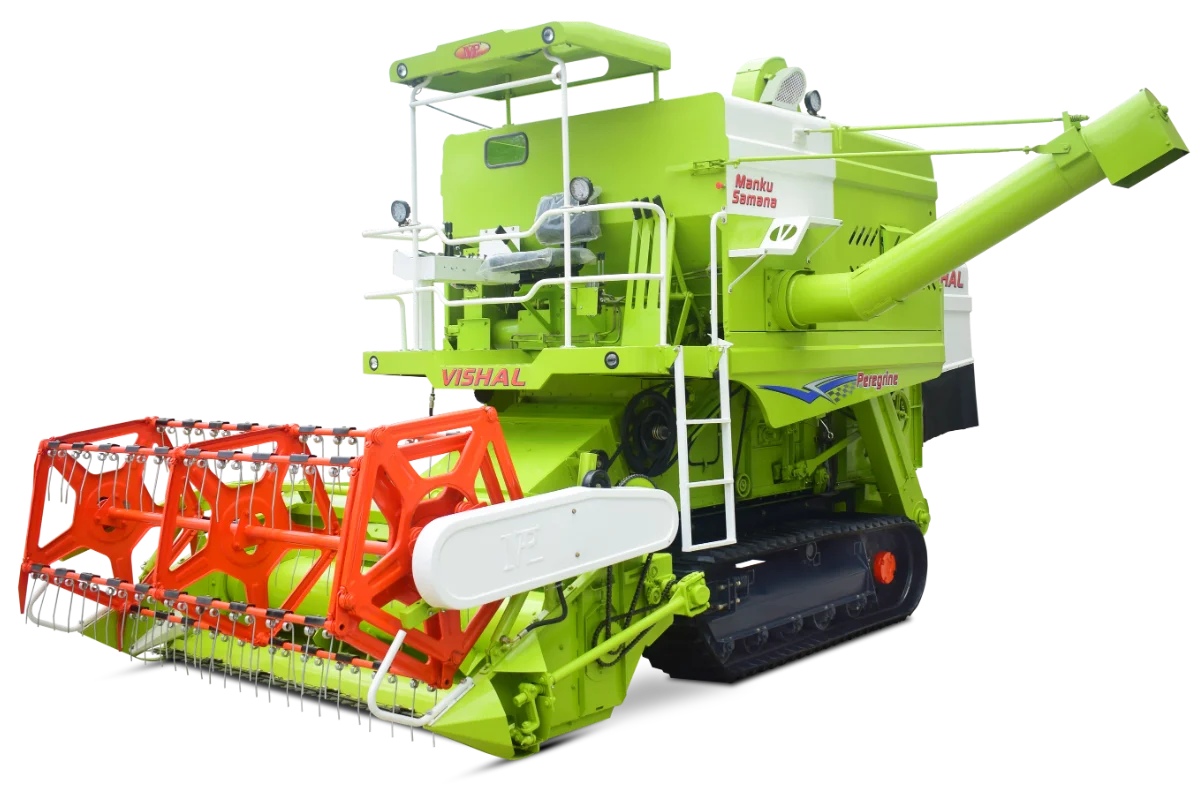

VISHAL Peregrine
Track Combine Harvesters
VISHAL Peregrine is track combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process.
Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.
Operational Niche
Wet Field Paddy Harvesting
Specifically engineered for harvesting rice crops in flooded or boggy agricultural lands.
Small to Medium Plot Agility
The 8-foot cutter bar and small turning radius allow for easy access to tighter boundaries.
Soft Soil Navigation
Heavy-duty tracks prevent the machine from sinking or slipping in soft, uncompacted soil.
High-Purity Grain Collection
Threshing and winnowing systems are optimized to ensure high grain cleanness with no breakage.
Product Video
Features
Better Sieves Design
Better Sieves Design
Enhances grain cleaning efficiency by ensuring better separation of grain from chaff.
Bridgstone-Track
Bridgstone-Track
Provides superior traction and stability for smooth operation in muddy and wet field conditions.
Danfoss Motor
Danfoss Motor
Delivers reliable hydraulic performance with smooth and efficient machine operation.
EATON Pump
EATON Pump
Ensures consistent hydraulic power for precise and responsive control.
Fuel Tank
Fuel Tank
Large capacity fuel tank supports longer working hours without frequent refueling.
Heavy Duty Cutter Bar
Heavy Duty Cutter Bar
Built for strength and durability to handle dense and heavy crops efficiently.
Heavy Duty Thresher Basket
Heavy Duty Thresher Basket
Ensures effective threshing with minimal grain damage and high output.
High Ground Clearance
High Ground Clearance
Prevents the machine from getting stuck, enabling easy operation in uneven and wet fields.
Radiator
Radiator
Maintains optimal engine temperature for uninterrupted and efficient performance.
Side Belts Mechanism
Side Belts Mechanism
Ensures smooth crop flow and efficient transfer during harvesting operations.
Stainless Steel Elevators
Stainless Steel Elevators
Offers corrosion resistance and long-lasting performance for grain handling.
Strong Traction Control
Strong Traction Control
Provides better grip and control, ensuring stability across challenging terrains.
Technical Specifications
| ENGINE of VISHAL 435 Brisk Plus | ||||
|---|---|---|---|---|
| Make | ASHOK LEYLAND | |||
| Model | ALU 402 | |||
| Type | Four Stroke, Water Cooled, Direct Injection Diesel Engine. | |||
| Maximum Speed at no load | 2400 RPM | |||
| Rated Speed | 2200 RPM | |||
| Rated Speed for Field Operations | 1750 | |||
| No. of Cylinder | Six | |||
| THRESHING DRUM | ||||
|---|---|---|---|---|
| THRESHING DRUM | FOR WHEAT | FOR PADDY | ||
| Type | Rasp Bar | Peg Tooth | ||
| Width (mm) | 1270 | 1265 | ||
| Outside dia (mm) | 600 | 600 | ||
| Range of speed corresponding to 7 RPM of engine (RPM) | ||||
| Minimum | 477 | 477 | ||
| Maximum | 1070 | 1070 | ||
| STRAW WALKER | ||||
| No. of Straw Walker | Five | |||
| Type | Closed Rack Type. Serrated side edges with 6 steps on each Straw Walker. | |||
| Size of each Straw Walker | ||||
| Length (mm) | 3990 | |||
| Width (mm) | 240 | |||
| Area (M2) | 0.95 | |||
| Effective separating area of straw walker (M2) | 5.31 | |||
| Lift/throw (mm) | 140/140 | |||
| Oscillation per minute corresponding to 1750 RPM of Engine | 144 | |||
| CONCAVE | ||||
| CONCAVE | FOR WHEAT | FOR PADDY | ||
| Overall Width of Concave (mm) | 1290 | 1285 | ||
| Effective Width (mm) | 1255 | 1250 | ||
| Type of concave | Open flat bars | Open flat bars with pegs in three rows. | ||
| No. of Bars | 12 | 8 | ||
| No. of Pegs per bars | - | 18 nos in two rows and 15 nos in one row | ||
| CLEANING SIEVES | ||||
| TOP Sieve | ||||
| No of sieve | Two | |||
| Type | Open lip frog mouth type | |||
| Overall size of sieve | FRONT | REAR | ||
| Length (mm) | 1240 | 635 | ||
| Width (mm) | 1215 | 1215 | ||
| Effective cleaning area (m2) | 1.35 | 0.65 | ||
| Area of extension (m2) | NIL | NIL | ||
| BOTTOM SIEVE | ||||
| No of Sieve | One | |||
| Type | Open Lip Frog Mouth Type | |||
| Length(mm) | 1400 | |||
| Width(mm) | 1215 | |||
| Effective Cleaning Area (m2) | 1.53 | |||
| Oscillation per minute corresponding to 1750rpm of engine | 268 | |||
| Method of varying oscillation | NONE | |||
| Height of lips at maximum opening (mm) | 20 | |||
| No. & type of bearings of sieve shaker assembly | 8 Ball Bearings (6205FLT Polland) 12 Rubber Bushes on linkages of shaker mechanism. | |||
| CUTTER BAR ASSEMBLY | ||||
|---|---|---|---|---|
| Working width with shoes (mm) | 4460 | |||
| Effective cutter bar width (mm) | 4250 | |||
| No. & Spacing of knife guards | 58 (29 Pairs), 75 mm Apart | |||
| No. & Type of knife blades | 59, Serrated | |||
| Details of knife drive | End of Cutter Bar is connected with a lever to the Pittman shaft and oscillated by a crank arm. | |||
| Knife Safety Arrangements | Knife Guard Provided | |||
| Knife stroke(mm) | 90 | |||
| Stroke per minute | 853 | |||
| Knife speed corresponding to 1750 rpm of engine (m/sec.) | 1.28 | |||
| Type of Crop dividers | Shoe | |||
| REEL ASSEMBLY | ||||
|---|---|---|---|---|
| Type | Tyne Bar Pick Up | |||
| Number of Tyne bars | Five | |||
| Size of Tyne bars (mm) | 4230 x 27 | |||
| Types of Tyne bars | Hollow metallic pipe with holes for fitting spring Tynes. | |||
| Dia of Reel (mm) | 975 | |||
| Width of Reel (mm) | 4150 | |||
| Range of speed corresponding to 1750 RPM of Engine (RPM) | Maximum: 28 Minimum: 64 | |||
| Arrangements for speed variation | Mechanical,Stepless V – Pulley with mechanical variator. | |||
| Number of tynes on each bar and their spacing | 36 (18 pairs), Spacing 113 mm | |||
| CLUTCH | ||||
|---|---|---|---|---|
| Type | Dry Friction Disc | |||
| Size (mm) | 310 | |||
| GEAR BOX & DIFFERENTIAL | ||||
| Type | Mechanical, combination of constant and sliding mesh spur gear with differential unit. | |||
| No. of Speeds | Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley. | |||
| TYRES | ||||
|---|---|---|---|---|
| Front | 18.4-30,12PR | |||
| Rear | 9.00,16PR | |||
| Break System | Disc Brake | |||
| Ground Clearance | 1761 | |||
| GRAIN TANK | ||||
|---|---|---|---|---|
| Location | On top of Combine, Behind Operator’s Seat. | |||
| Capacity: Volume Basis (M3) | 2.180 | |||
| Capacity: Mass Basis (kg) | 1810 | |||
| FUEL TANK | ||||
| Capacity | 110 Liters | |||
| Fuel Type | Diesel | |||
| OVERALL DIMESIONS | Working | Transport | ||
|---|---|---|---|---|
| Length (mm) | 8220 | 12220 | ||
| Width (mm) | 6370 | 3130 | ||
| Height (mm) | 3820 | 3820 | ||
| WEIGHT | 9400 Kg+ | |||
