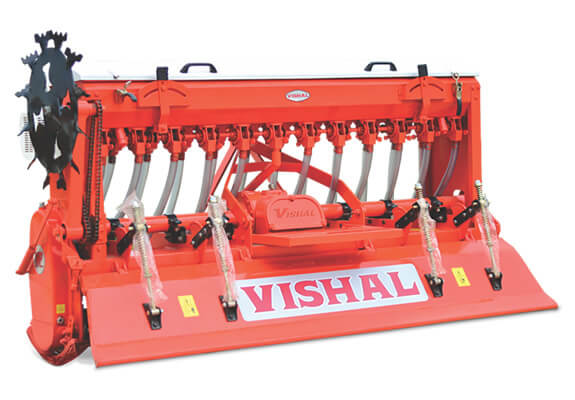

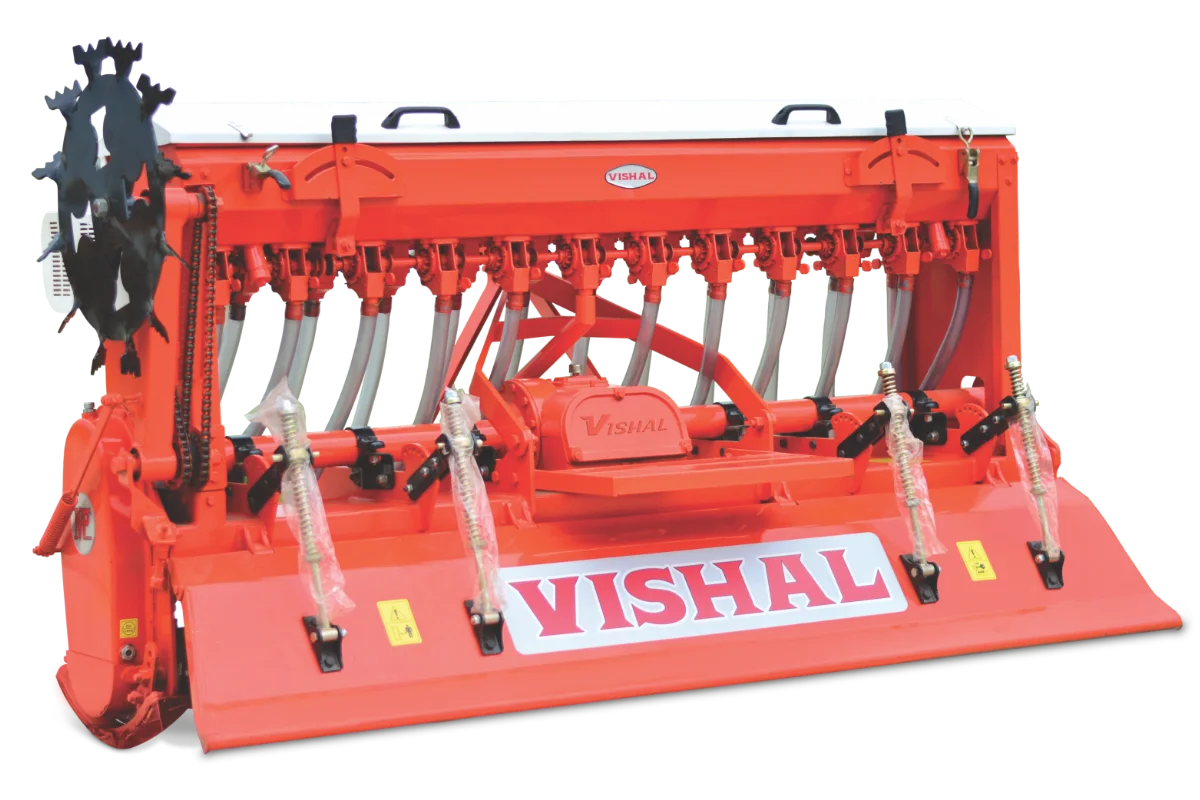

VISHAL Roto Seeder
Super Saver of Time & Fuel
The VISHAL Roto Seeder is an advanced agricultural implement designed to simplify the sowing process while ensuring maximum efficiency and precision. Built with robust engineering and high-quality materials, it combines soil preparation and seed sowing in a single operation, saving both time and fuel for farmers.
Areas of Application
Wheat Farming
Suitable for efficient harvesting of wheat crops, ensuring clean grain output, reduced losses, and smooth field operation.
Paddy Farming
Designed to operate in wet and muddy field conditions, providing stable performance and reliable paddy harvesting.
Maize Farming
Equipped to handle maize harvesting with proper cutting and threshing efficiency, maintaining grain quality and yield.
Grams & Pulses
Capable of harvesting and threshing various pulses with gentle grain handling to minimize breakage and retain quality.
Product Video
Features

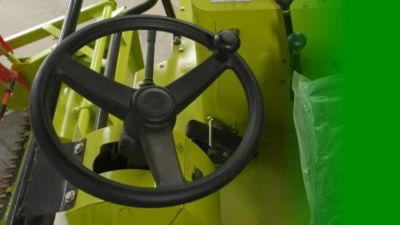

Power Steering
Power Steering
Ensures smooth and effortless maneuverability, allowing precise control even in challenging field conditions.
Auto Cleaner
Auto Cleaner
Keeps the harvester’s internal systems free from dust and debris for consistent performance and reduced downtime.
Straw Walker
Straw Walker
Efficiently separates grain from straw, ensuring minimal loss and maximum crop recovery.

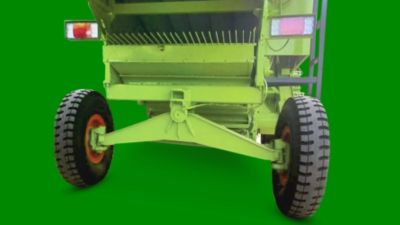

Rigid Rear Axle
Rigid Rear Axle
Provides unmatched stability and load-bearing strength, even on uneven or rough terrain.
Safety Shields
Safety Shields
Fuly Openable Safety Shields - Allow quick and easy access for maintenance while ensuring maximum operator safety.

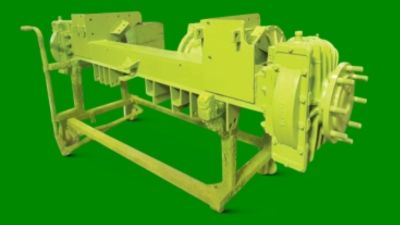

Strong Front Axle
Strong Front Axle
Built to withstand heavy-duty field operations, delivering durability and long service life.

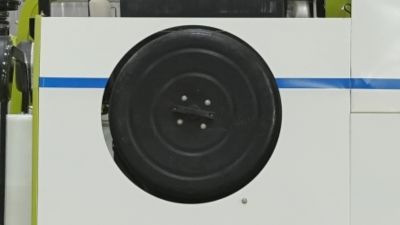

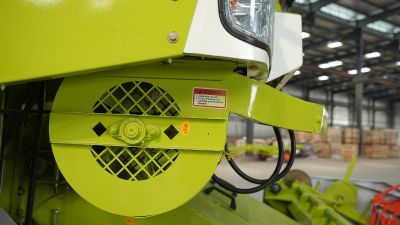

Dust Blower
Dust Blower
Prevents dust accumulation, protecting critical components and improving operational efficiency.

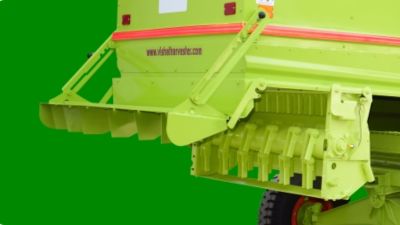

Straw Management System
Straw Management System
Handles crop residue effectively, ensuring cleaner fields and supporting sustainable farming practices.
Technical Specifications
| THRESHING DRUM | ||||
|---|---|---|---|---|
| THRESHING DRUM | FOR WHEAT | FOR PADDY | ||
| Type | Rasp Bar | Peg Tooth | ||
| Width (mm) | 1270 | 1265 | ||
| Outside dia (mm) | 600 | 600 | ||
| Range of speed corresponding to 7 RPM of engine (RPM) | ||||
| Minimum | 477 | 477 | ||
| Maximum | 1070 | 1070 | ||
| STRAW WALKER | ||||
| No. of Straw Walker | Five | |||
| Type | Closed Rack Type. Serrated side edges with 6 steps on each Straw Walker. | |||
| Size of each Straw Walker | ||||
| Length (mm) | 3990 | |||
| Width (mm) | 240 | |||
| Area (M2) | 0.95 | |||
| Effective separating area of straw walker (M2) | 5.31 | |||
| Lift/throw (mm) | 140/140 | |||
| Oscillation per minute corresponding to 1750 RPM of Engine | 144 | |||
| CONCAVE | ||||
| CONCAVE | FOR WHEAT | FOR PADDY | ||
| Overall Width of Concave (mm) | 1290 | 1285 | ||
| Effective Width (mm) | 1255 | 1250 | ||
| Type of concave | Open flat bars | Open flat bars with pegs in three rows. | ||
| No. of Bars | 12 | 8 | ||
| No. of Pegs per bars | - | 18 nos in two rows and 15 nos in one row | ||
| CLEANING SIEVES | ||||
| TOP Sieve | ||||
| No of sieve | Two | |||
| Type | Open lip frog mouth type | |||
| Overall size of sieve | FRONT | REAR | ||
| Length (mm) | 1240 | 635 | ||
| Width (mm) | 1215 | 1215 | ||
| Effective cleaning area (m2) | 1.35 | 0.65 | ||
| Area of extension (m2) | NIL | NIL | ||
| BOTTOM SIEVE | ||||
| No of Sieve | One | |||
| Type | Open Lip Frog Mouth Type | |||
| Length(mm) | 1400 | |||
| Width(mm) | 1215 | |||
| Effective Cleaning Area (m2) | 1.53 | |||
| Oscillation per minute corresponding to 1750rpm of engine | 268 | |||
| Method of varying oscillation | NONE | |||
| Height of lips at maximum opening (mm) | 20 | |||
| No. & type of bearings of sieve shaker assembly | 8 Ball Bearings (6205FLT Polland) 12 Rubber Bushes on linkages of shaker mechanism. | |||
| CUTTER BAR ASSEMBLY | ||||
|---|---|---|---|---|
| Working width with shoes (mm) | 4460 | |||
| Effective cutter bar width (mm) | 4250 | |||
| No. & Spacing of knife guards | 58 (29 Pairs), 75 mm Apart | |||
| No. & Type of knife blades | 59, Serrated | |||
| Details of knife drive | End of Cutter Bar is connected with a lever to the Pittman shaft and oscillated by a crank arm. | |||
| Knife Safety Arrangements | Knife Guard Provided | |||
| Knife stroke(mm) | 90 | |||
| Stroke per minute | 853 | |||
| Knife speed corresponding to 1750 rpm of engine (m/sec.) | 1.28 | |||
| Type of Crop dividers | Shoe | |||
| REEL ASSEMBLY | ||||
|---|---|---|---|---|
| Type | Tyne Bar Pick Up | |||
| Number of Tyne bars | Five | |||
| Size of Tyne bars (mm) | 4230 x 27 | |||
| Types of Tyne bars | Hollow metallic pipe with holes for fitting spring Tynes. | |||
| Dia of Reel (mm) | 975 | |||
| Width of Reel (mm) | 4150 | |||
| Range of speed corresponding to 1750 RPM of Engine (RPM) | Maximum: 28 Minimum: 64 | |||
| Arrangements for speed variation | Mechanical,Stepless V – Pulley with mechanical variator. | |||
| Number of tynes on each bar and their spacing | 36 (18 pairs), Spacing 113 mm | |||
| CLUTCH | ||||
|---|---|---|---|---|
| Type | Dry Friction Disc | |||
| Size (mm) | 310 | |||
| GEAR BOX & DIFFERENTIAL | ||||
| Type | Mechanical, combination of constant and sliding mesh spur gear with differential unit. | |||
| No. of Speeds | Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley. | |||
| TYRES | ||||
|---|---|---|---|---|
| Front | 18.4-30,12PR | |||
| Rear | 9.00,16PR | |||
| Break System | Disc Brake | |||
| Ground Clearance | 1761 | |||
| GRAIN TANK | ||||
|---|---|---|---|---|
| Location | On top of Combine, Behind Operator’s Seat. | |||
| Capacity: Volume Basis (M3) | 2.180 | |||
| Capacity: Mass Basis (kg) | 1810 | |||
| FUEL TANK | ||||
| Capacity | 110 Liters | |||
| Fuel Type | Diesel | |||
| OVERALL DIMESIONS | Working | Transport | ||
|---|---|---|---|---|
| Length (mm) | 8220 | 12220 | ||
| Width (mm) | 6370 | 3130 | ||
| Height (mm) | 3820 | 3820 | ||
| WEIGHT | 9400 Kg+ | |||
Testimonials
Balwinder Singh, Mansa (Punjab)
“We bought our first Vishal 435 Combine in 2010, and it’s still running like new. Hardly needs any repair, and it finishes harvesting in half the time compared to others.”
Gurpreet Singh, Sangrur (Punjab)
“My father used Vishal Combine, now I’m using the same model. The machine never disappointed us — strong build, smooth working, and top output every season.”
Rajesh Yadav, Baghpat (Uttar Pradesh)
“I have been using Vishal 435 for more than 8 years. It saves fuel, works fast, and gives clean grain — that’s why our whole family trusts only Vishal.”
Harbhajan Singh, Tarn Taran (Punjab)
“Since 2009, we’ve used the same Vishal Combine for wheat and paddy. Still solid and powerful — this is what real quality looks like.”
Sandeep Dhull, Hisar (Haryana)
“Our village has many machines, but Vishal 435 runs the longest with the least maintenance. My father says it’s like a family member now.”
Ramesh Patel, Vidisha (Madhya Pradesh)
“I’ve been operating Vishal 435 Combine for 10 years. Strong body, heavy duty, and never gives trouble in the middle of the field — perfect for our soil and crop.”
Amarjeet Singh, Faridkot (Punjab)
“From my grandfather’s time, our family only trusts Vishal Combines. The 435 model gives excellent output, and it’s built like a tank.”
Sunil Kumar, Rohtak (Haryana)
“Using Vishal 435 since 2011. It works day and night without any problem — truly time-saving and reliable. Maintenance cost is almost nothing.”
Raghvendra Singh, Etawah (Uttar Pradesh)
“Our old Vishal Combine has completed more than 12 seasons. Still running perfectly, no breakdowns — it’s proof of real Indian strength.”
Kuldeep Singh, Bathinda (Punjab)
“Vishal 435 is part of our farming story now. From my father to me, the trust has stayed because it never fails — strong, steady, and always ready.”
Downloads
₹
Easy Financing Options
Supported by Public Sector Banks, Private Sector Banks and NBFCs
Related Products

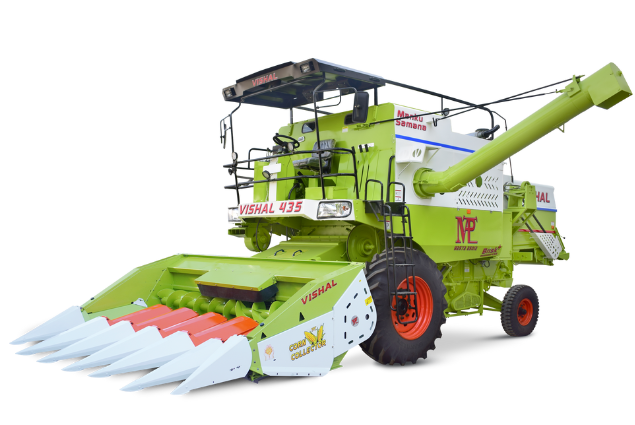

VISHAL 435 - Brisk Plus

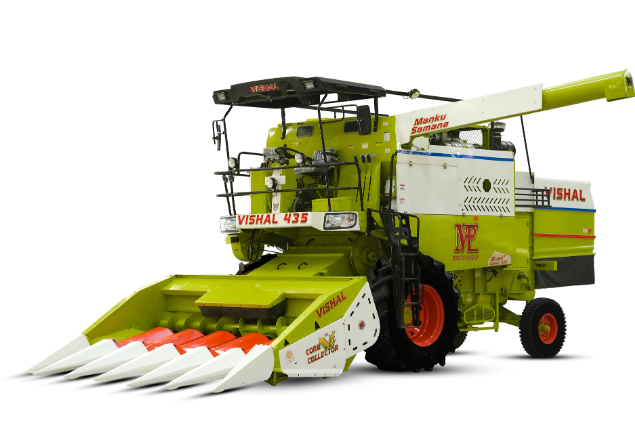

Maize Special Combine Harvester
