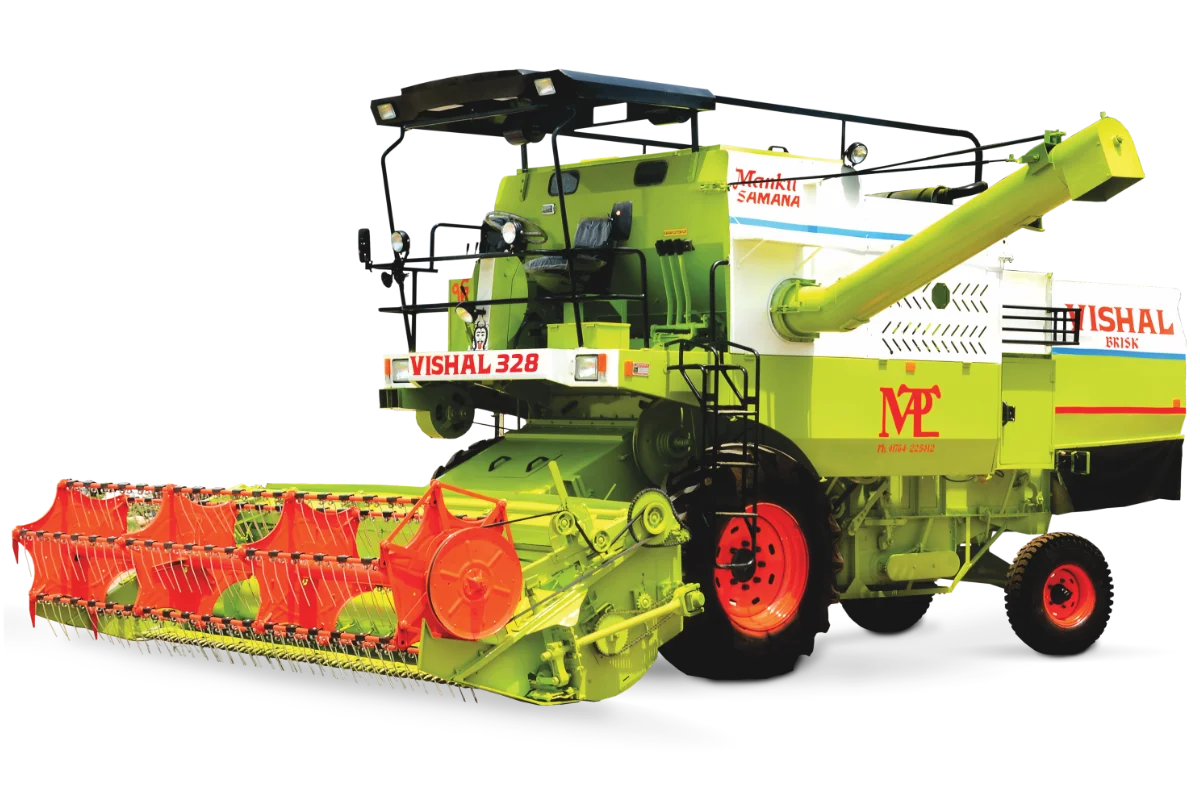

VISHAL 328 LEAL

Self Propelled Combine Harvesters

VISHAL 328 Leal is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses.


The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.

Areas of Application

Some placeholder content for Sugarcane Farming. This section toggles when the title above is clicked.

Some placeholder content for Sugarcane Farming. This section toggles when the title above is clicked.

Some placeholder content for Sugarcane Farming. This section toggles when the title above is clicked.

Some placeholder content for Sugarcane Farming. This section toggles when the title above is clicked.

Product Video

Features

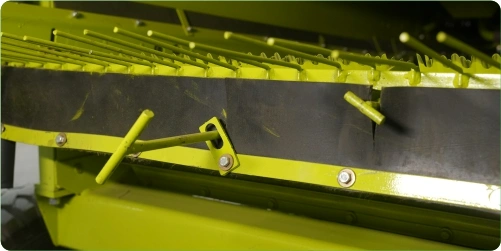

Adjuster for Sieves

Adjuster for Sieves

Allows precise adjustment for improved grain cleaning and separation efficiency.

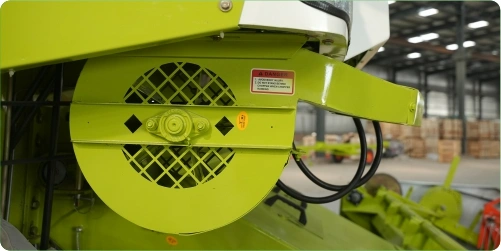

Blower

Blower

Ensures effective removal of dust and chaff for cleaner grain output.

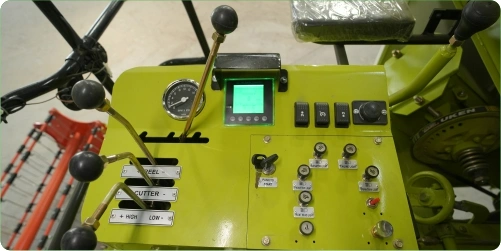

Control Panel

Control Panel

Provides easy access to all controls for smooth and efficient machine operation.

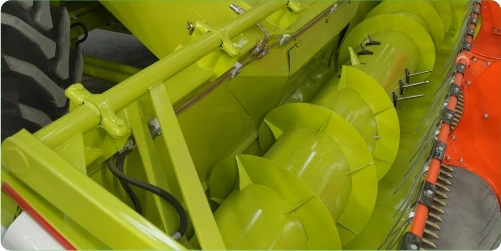

Cutter Bar Auger With Hydraulic Grooves

Cutter Bar Auger With Hydraulic Grooves

Enhances smooth crop flow and efficient feeding into the machine.

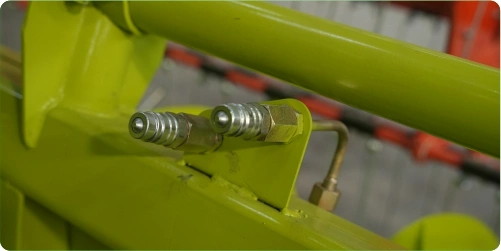

Cutter Bar Hydraulics

Cutter Bar Hydraulics

Enables easy height and position adjustment for better cutting performance.

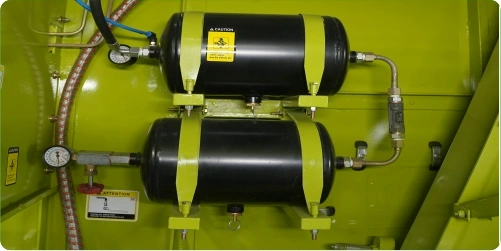

Double Air Tank

Double Air Tank

Supports consistent air pressure for reliable operation of pneumatic systems.

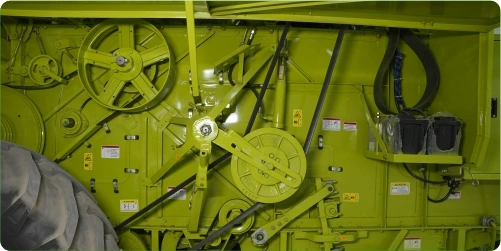

Easy Maintenance

Easy Maintenance

Designed for quick servicing to reduce downtime and improve productivity.

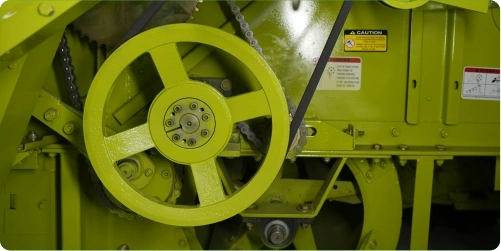

Easy to open with L-key Bolt

Easy to open with L-key Bolt

Allows quick and convenient access for inspection and maintenance.

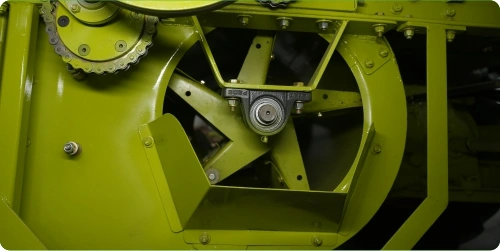

Elevator Cover

Elevator Cover

Protects internal components from dust and external damage for longer lifespan.

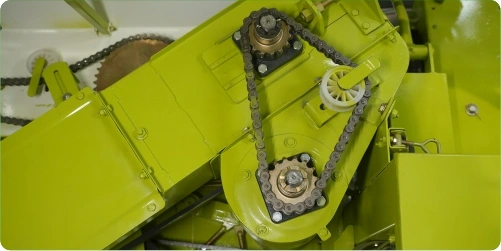

Elevator Chains

Elevator Chains

Ensures smooth and efficient transfer of grain within the machine.

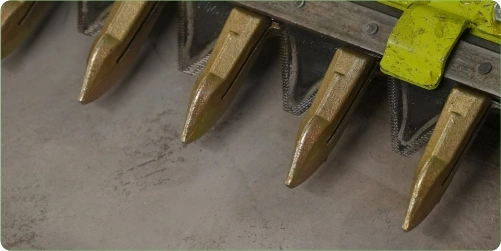

Heavy duty cutter bar Knife Guard and blades

Heavy duty cutter bar Knife Guard and blades

Provides strong protection and precise cutting for tough crop conditions.

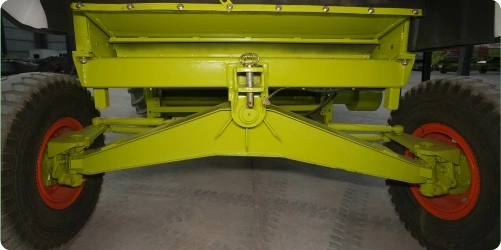

Heavy Duty Rear Axle

Heavy Duty Rear Axle

Delivers superior strength and stability for reliable performance on rough terrain.

Technical Specifications

ENGINE of VISHAL 328 - Leal
Make ASHOK LEYLAND
Model ALU 400
Type Four Stroke, Water Cooled, Direct Injection Diesel Engine
Max Speed 2400 RPM
Rated Speed 2200 RPM
Field Speed 1750
Cylinders Six
THRESHING DRUM
Wheat Paddy
Type Rasp Bar Peg Tooth
Width 1145 1145
Dia 605 600
Min Speed 573 573
Max Speed 1034 1034
STRAW WALKER
No. Five
Type Closed Rack Type
Length 3990
Width 210
Area 0.82
Effective Area 4.66
Lift 140/140
Oscillation 152
CONCAVE
Wheat Paddy
Width 1165 1160
Effective 1130 1125
Type Open flat bars With pegs
Bars 12 8
Pegs - 15 & 16
CUTTER BAR
Width 4030
Effective Width 3960
Knife Guards 52 (26 Pairs)
Blades 54 Serrated
Stroke 90
Stroke/min 840
Speed 1.26
REEL ASSEMBLY
Type Tyne Bar Pick Up
Bars Five
Size 3860 x 27
Diameter 975
Width 4150
Speed 71 - 28
Tynes 36 (18 pairs)
TRANSMISSION
Clutch Dry Friction Disc
Gearbox Mechanical
Speeds 6 Forward + 2 Reverse
TYRES
Front 18.4-30
Rear 9.00-16
Brake Disc Brake
Ground Clearance 1761
CAPACITY
Volume 1.566
Weight 1300
Fuel Tank 110 Liters
Working Transport
Length 8220 12220
Width 6370 3130
Height 3820 3820
Weight 9400 kg+
