VISHAL 312 - ATOM

Self Propelled Combine Harvesters

VISHAL 312 ATOM is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses.


VISHAL 312 ATOM is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.

Areas of Application

Suitable for efficient harvesting of wheat crops, ensuring clean grain output, reduced losses, and smooth field operation.

Designed to operate in wet and muddy field conditions, providing stable performance and reliable paddy harvesting.

Equipped to handle maize harvesting with proper cutting and threshing efficiency, maintaining grain quality and yield.

Capable of harvesting and threshing various pulses with gentle grain handling to minimize breakage and retain quality.

Product Video

Features

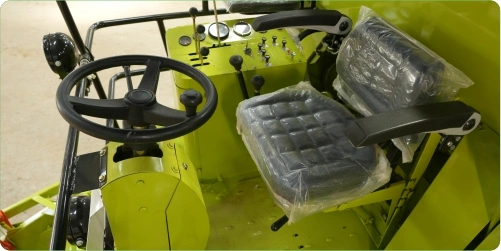

Adjustable Stearing & COmfortable Operator Seat

Adjustable Stearing

Provides ergonomic comfort and easy control for long working hours in the field.

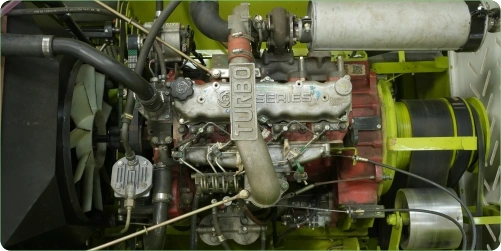

Engine

Engine

Delivers powerful and reliable performance for efficient harvesting operations.

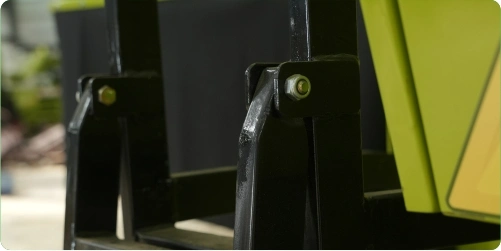

Folding Rear Stair

Folding Rear Stair

Allows easy access to the machine while saving space when not in use.p>

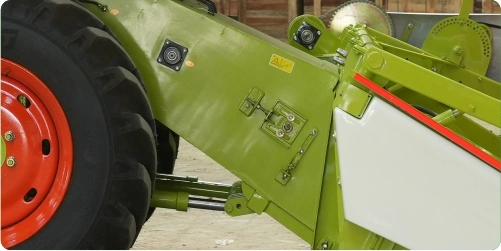

Larger Feeder

Larger Feeder

Enhances crop intake capacity for faster and more efficient harvesting.

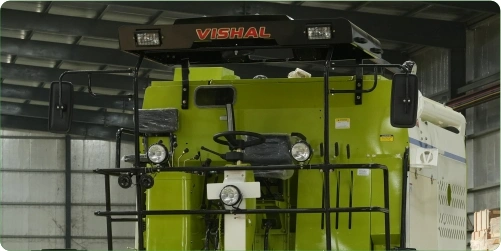

Wide View Operator Cabin

Wide View Operator Cabin

Offers excellent visibility for safer and more accurate field operations.

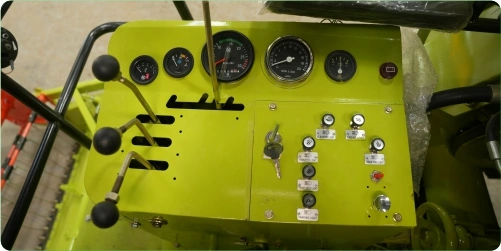

Operator Control Panel

Operator Control Panel

Enables easy monitoring and control of all machine functions from one place.

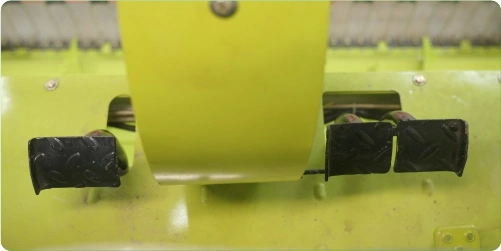

Race Padel Controller

Race Padel Controller

Improves crop flow and reduces grain loss during harvesting.

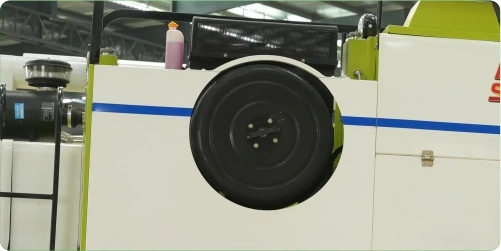

Radiator

Radiator

Maintains optimal engine temperature for consistent and long-lasting performance.

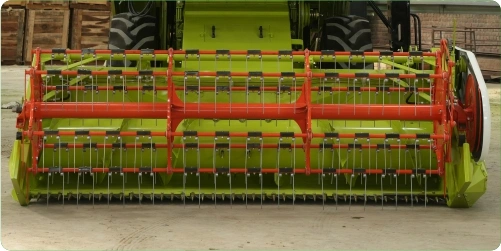

Smaller Cutter Bar

Smaller Cutter Bar

Ideal for precise cutting in smaller or uneven fields.

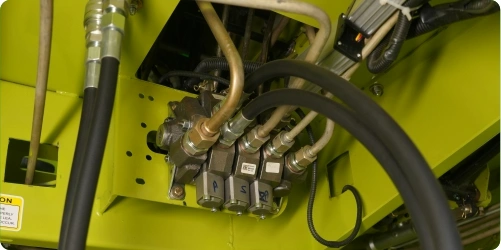

Hydfraulic Connections

Hydfraulic Connections

Ensure smooth and efficient operation of multiple hydraulic functions.

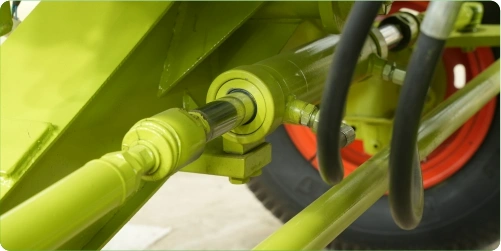

Hydraulic Rear Axle

Hydraulic Rear Axle

Provides better control and stability, especially on rough terrain.

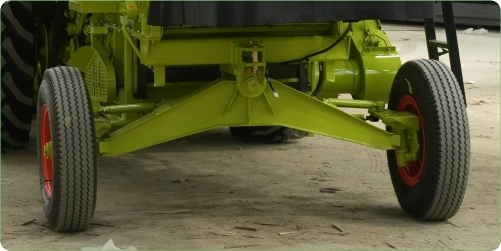

Rear Axle

Rear Axle

Offers strong support and balance for stable machine performance in the field.

Technical Specifications

MODEL
Engine H6 Ashok Leyland / BS IV
Power (HP) 101
No. of Cylinders 4
Air Cleaner Dry Air Cleaner
Cooling System Water Cooled
THRESHER DRUM
Dia (mm) 605
Width (mm) 890
Drum Speed (RPM) 540-1200
No. of Straw Walkers 4
CUTTER BAR
Working Width 3075 mm
Overall Width 3300 mm
Height Adjustment Hydraulic
Knife Stroke 70 mm
Stroke Per Minute 526
REEL
Type Pick Up Tine
Speed Adjustment Mechanical / Stepped Pulley
Height Adjustment Hydraulic
No. of Reel Pipes 6 (Six)
TRANSMISSION
No. of Gears 3 Forward, 1 Reverse
Maximum Speed 35 Km/h
BRAKE SYSTEM
Brake Type Hydraulic Assisted Disc Brakes
TYRE SIZE
Front Tyres 16-9-30
Rear & Trailer Tyres 7.50-16
CAPACITY
Grain Tank 1000 kg
Fuel Tank 130 Ltrs
Hydraulic Tank 15 Ltrs
Coolant 38 Ltrs
Gear Box Oil 14 Ltrs
WORKING CAPACITY
Wheat 2 to 2.5 Acres
Paddy 2 to 2.5 Acres
MAIN DIMENSIONS
Length 1250 / 725
Width 2760
Height 3810
Wheel Base 2955
Total Weight 6285
Width (inches) 46
Track Width 1730 / 1580
Ground Clearance 415
Turning Diameter 8.01
CUTTER BAR MECHANISM
Width 10 ft / 3000
Reel Drive V-Belt Drive
