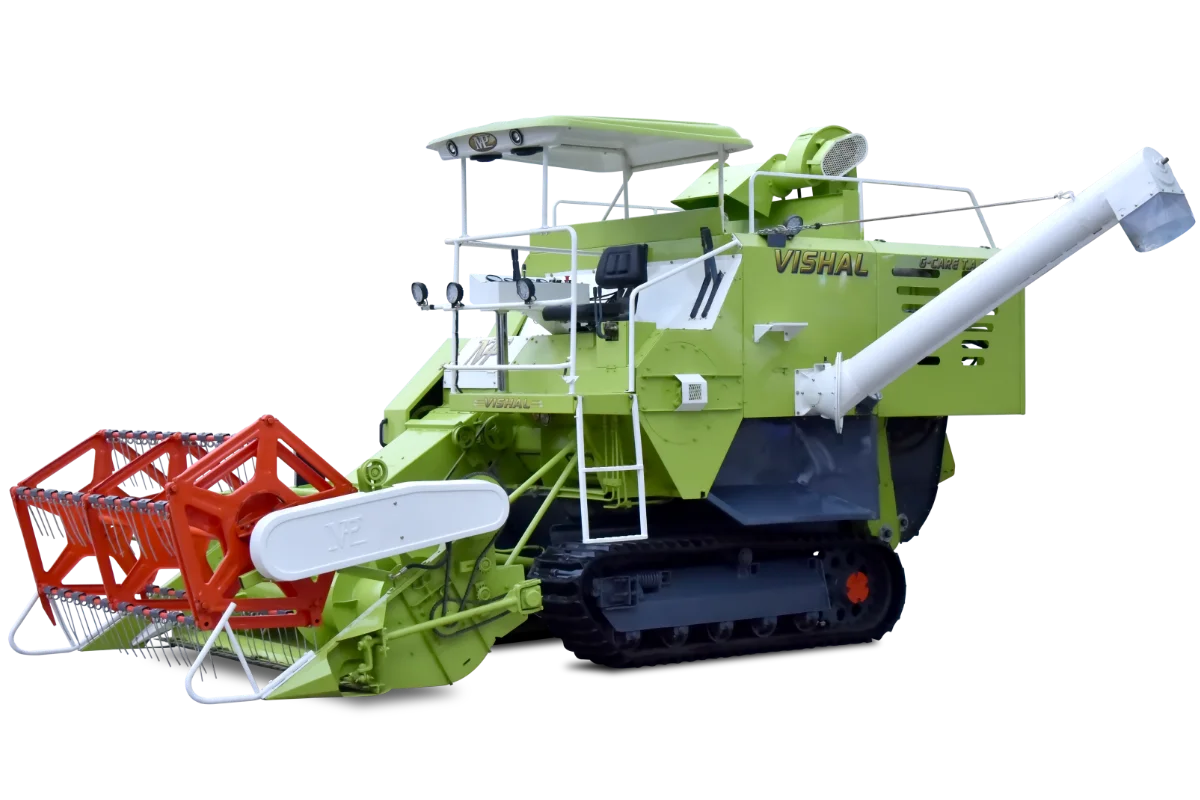

VISHAL Grain Care

Track Combine Harvesters

VISHAL Grain Care is track combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. we are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.


VISHAL Grain Care is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.

Areas of Application

Suitable for efficient harvesting of wheat crops, ensuring clean grain output, reduced losses, and smooth field operation.

Designed to operate in wet and muddy field conditions, providing stable performance and reliable paddy harvesting.

Equipped to handle maize harvesting with proper cutting and threshing efficiency, maintaining grain quality and yield.

Capable of harvesting and threshing various pulses with gentle grain handling to minimize breakage and retain quality.

Product Video

Features

Better Sieves Design

Better Sieves Design

Enhances grain cleaning efficiency by ensuring better separation of grain from chaff.

Bridgstone-Track

Bridgstone-Track

Provides superior traction and stability for smooth operation in muddy and wet field conditions.

Danfoss Motor

Danfoss Motor

Delivers reliable hydraulic performance with smooth and efficient machine operation.

EATON Pump

EATON Pump

Ensures consistent hydraulic power for precise and responsive control.

Fuel Tank

Fuel Tank

Large capacity fuel tank supports longer working hours without frequent refueling.

Heavy Duty Cutter Bar

Heavy Duty Cutter Bar

Built for strength and durability to handle dense and heavy crops efficiently.

Heavy Duty Thresher Basket

Heavy Duty Thresher Basket

Ensures effective threshing with minimal grain damage and high output.

High Ground Clearance

High Ground Clearance

Prevents the machine from getting stuck, enabling easy operation in uneven and wet fields.

Radiator

Radiator

Maintains optimal engine temperature for uninterrupted and efficient performance.

Side Belts Mechanism

Side Belts Mechanism

Ensures smooth crop flow and efficient transfer during harvesting operations.

Stainless Steel Elevators

Stainless Steel Elevators

Offers corrosion resistance and long-lasting performance for grain handling.

Strong Traction Control

Strong Traction Control

Provides better grip and control, ensuring stability across challenging terrains.

Technical Specifications

ENGINE of VISHAL 435 Brisk Plus
Make ASHOK LEYLAND
Model ALU 402
Type Four Stroke, Water Cooled, Direct Injection Diesel Engine.
Maximum Speed at no load 2400 RPM
Rated Speed 2200 RPM
Rated Speed for Field Operations 1750
No. of Cylinder Six
THRESHING DRUM
THRESHING DRUM FOR WHEAT FOR PADDY
Type Rasp Bar Peg Tooth
Width (mm) 1270 1265
Outside dia (mm) 600 600
Range of speed corresponding to 7 RPM of engine (RPM)
Minimum 477 477
Maximum 1070 1070
STRAW WALKER
CONCAVE
CLEANING SIEVES
BOTTOM SIEVE
CUTTER BAR ASSEMBLY
Working width with shoes (mm) 4460
Effective cutter bar width (mm) 4250
No. & Spacing of knife guards 58 (29 Pairs), 75 mm Apart
No. & Type of knife blades 59, Serrated
Details of knife drive End of Cutter Bar is connected with a lever to the Pittman shaft and oscillated by a crank arm.
Knife Safety Arrangements Knife Guard Provided
Knife stroke(mm) 90
Stroke per minute 853
Knife speed corresponding to 1750 rpm of engine (m/sec.) 1.28
Type of Crop dividers Shoe
REEL ASSEMBLY
Type Tyne Bar Pick Up
Number of Tyne bars Five
Size of Tyne bars (mm) 4230 x 27
Types of Tyne bars Hollow metallic pipe with holes for fitting spring Tynes.
Dia of Reel (mm) 975
Width of Reel (mm) 4150
Range of speed corresponding to 1750 RPM of Engine (RPM) Maximum: 28 Minimum: 64
Arrangements for speed variation Mechanical,Stepless V – Pulley with mechanical variator.
Number of tynes on each bar and their spacing 36 (18 pairs), Spacing 113 mm
CLUTCH
Type Dry Friction Disc
Size (mm) 310
GEAR BOX & DIFFERENTIAL
Type Mechanical, combination of constant and sliding mesh spur gear with differential unit.
No. of Speeds Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley.
TYRES
Front 18.4-30,12PR
Rear 9.00,16PR
Break System Disc Brake
Ground Clearance 1761
GRAIN TANK
Location On top of Combine, Behind Operator’s Seat.
Capacity: Volume Basis (M3) 2.180
Capacity: Mass Basis (kg) 1810
FUEL TANK
Capacity 110 Liters
Fuel Type Diesel
OVERALL DIMESIONS Working Transport
Length (mm) 8220 12220
Width (mm) 6370 3130
Height (mm) 3820 3820
WEIGHT 9400 Kg+
