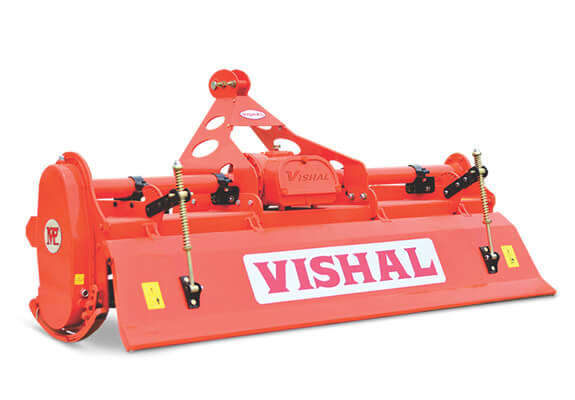

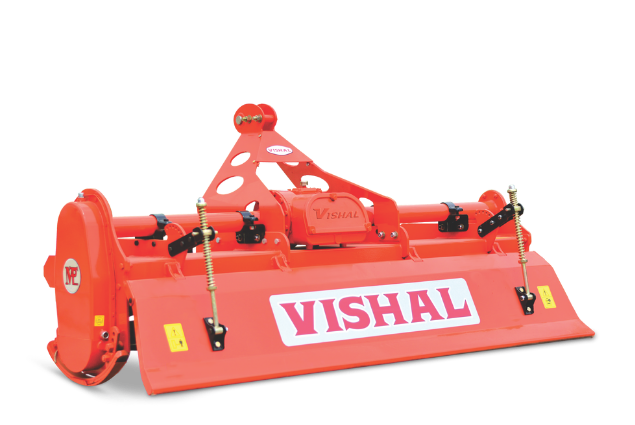

VISHAL Rotavator
Super Saver of Time & Fuel
Model: VISHAL Rotavator
Category: Tractor Attachment
Sizes Available: 5, 6, 7 Feet
Tractor Required: 35 - 75 HP
Gear Box: Single / Multi Speed
Transmission: Gear / Chain
PTO Speed: 540 RPM
Rotar Speed: 225 / 175
VISHAL Rotavator is a mechanized cultivating implement that is used to prepare soil for planting. It is one of the most popular power tools among farmers. Also known as rotary tillers, rotavators are smaller and less expensive.
VISHAL Rotavator is engineered with two sets of specially-designed circular blades or tines that are attached to a motorized horizontal shaft. The tiller spins the tines, digging them down into the topsoil to a pre-determined depth. The tines loosen and lift the soil, turning it over.
Rotavator is equipped with a gearbox and driven forward, or held back, by tractor. The gearbox enables the forward speed to be adjusted while the rotational speed of the tines remains constant which enables the operator to easily regulate the extent to which soil is engaged.
VISHAL Rotavator is engineered with two sets of specially-designed circular blades or tines that are attached to a motorized horizontal shaft. The tiller spins the tines, digging them down into the topsoil to a pre-determined depth. The tines loosen and lift the soil, turning it over.
Rotavator is equipped with a gearbox and driven forward, or held back, by tractor. The gearbox enables the forward speed to be adjusted while the rotational speed of the tines remains constant which enables the operator to easily regulate the extent to which soil is engaged.
Features and Highlights:
|
Overall Size | 7 Feet | 6 Feet | 5 Feet |
Width | 2510 (mm) | 2278 (mm) | 2065 (mm) |
Height | 1095 (mm) | 1095 (mm) | 1095 (mm) |
Length | 1350 (mm) | 1350 (mm) | 1350 (mm) |
Working Width | 2138 (mm) | 1925 (mm) | 1705 (mm) |
Working Depth | 155 (mm) | 155 (mm) | 155 (mm) |
HP Required | 50-60 HP | 50-55 HP | 40-45 HP |
Number of Flanges | 10 | 9 | 8 |
Number of Blades | 54 | 48 | 42 |
PTO Speed (rpm) | 540 | 540 | 540 |
Rotor Speed (rpm) | 215 | 215 | 215 |
Weight | 494 Kg. (Approx.) | 472 Kg. (Approx.) | 455 Kg. (Approx.) |
Due to our policy of continues R&D in Product Improvement and Development the Product Design, Color and/or Technical Specifications may change without any prior notice. Please confirm the Latest Product Specifications by mailing us at vishalcombine@manku.co.in
